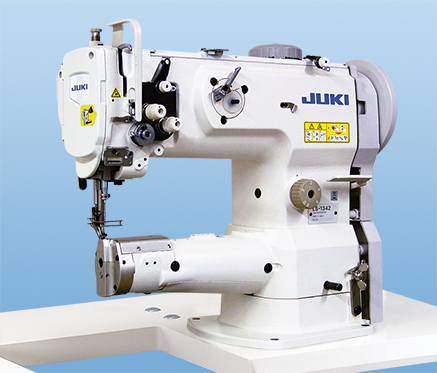

Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine

The machine provides good tightness of seams even with lower thread tension, and reduces the variances of stitch length at high and low speed.

Thanks to a slide take-up lever, the responsiveness to thick threads has been further improved, and the ratio of alternating vertical movement remains unchaged even with the changes of material thickness.

Model Name DSC-245-7-0B/X55167 DSC-245/X55200 DSC-245/X55278
Max. sewing speed 2,200sti/min
Max. stitch length 6mm (nomal/reverse feed)
Lift of the presser foot By hand: 9mm, By knee: 16mm (max.)
Alternating vertical movement 2.5~6.5mm
Needle 135×17 (Nm130) Nm100~Nm180
Thread #50~#8, B33~B92, Nm=120/3~30/3
